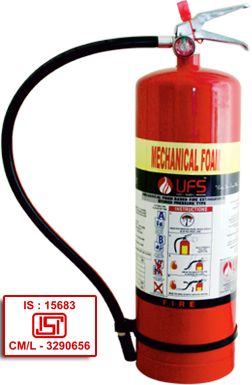

Mechanical Foam Based Fire Extinguisher (Stored Pressure)

Capacity: 9 Litre

APPLICATIONS
  • "UFS" stored pressure mechanical foam based fire extinguishers are suitable for A & B fire classes such as ordinary combustible materials and flammable liquids.
  • Reliable components are carefully chosen to give maximum efficiency along with high quality agent, to achieve high performance..
FEATURES
  • Deep drawn container made of high tensile cold rolled sheet.
  • Minimum welding points to give attractive appearance.
  • "UFS" Extinguisher pressurized to 15 bar and 100% leakage tested.
  • The epoxy powder coating of 50 to 90 micron thickness provides inner & outer surface of the body.
  • Easy operation, maintenance, refilling and service.
  • The easy squeeze grip type control valve provides for quick activation of the extinguisher.
  • "UFS" extinguishers designed in compliance with BIS Standards.
abc
TECHNICAL SPECIFICATIONS

   Capacity (Ltr)

9 ltr

   Body material

Mild steel sheet

   Body sheet thickness (mm)

1.7 to 1.8 mm

   Extinguishing agent

water + AFFF

   Propelling gas Nitrogen (N2)

15 bar

   Discharge time (sec.)

Minimum13 sec.

   Service pressure

15 – 19 bar

   Hydraulic test pressure

35 bar

   Operating temperature

+5°C to +55° C

   Body burst pressure

Minimum 55 bar

   Propelling AFFF foam ( 6% concentrate)

540 ml

   Hose length (mm)

Minimum 400 mm

   Discharge throw (meter)

2 – 5 mtr

   Dimension ( OD )mm

175 mm

   Fire Rating

3A & 34B

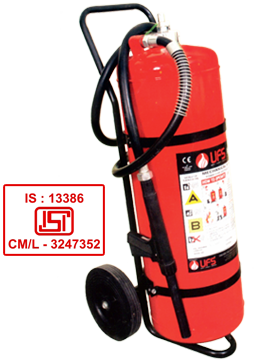

HiGHER CAPACITY TROLLEY MOUNTED Mech. Foam Type Fire Extinguisher

Capacity: 50 Litre


APPLICATIONS
  • "UFS" mechanical foam based gas cartridge fire extinguishers are suitable for A & B fire classes such as ordinary combustible materials and flammable liquids.
  • Reliable components are carefully chosen to give maximum efficiency along with high quality agent, to achieve high performance.
FEATURES
  • Minimum welding points to give attractive appearance.
  • The epoxy powder coating of 50 to 90 micron thickness provides inner & outer surface of the body
  • "UFS" Extinguishers are 100 % leakage tested
  • Easy operation, maintenance, refilling and service.
  • "UFS"extinguishers designed in compliance with BIS Standards.
abc
TECHNICAL SPECIFICATIONS

   Capacity

50 ltr

   Extinguishing agent

water + AFFF

   Discharge time (sec)
60 sec.
   Range of jet throw (meter)
10 mtr
   Hose length (meter)
3 mtr
   Hose bore (mm)
19 mm
   Hydraulic pressure test
30 kgf/cm2
   Hydraulic burst test
45 kgf/cm2
   Gas cartridge (CO2)
300 gms
   Wheeled carriage
As per standard
   Propelling - AFFF foam ( 6% concentrate)
3 ltr
   Dimension ( OD ) mm
300 mm
