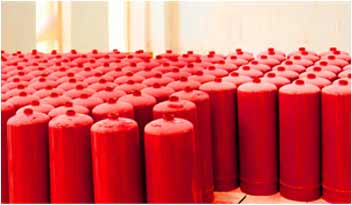

Fire Extinguisher Cylinder body (OEM Product)

Capacity: 1,2,4,6,9 Kgs

FEATURES
  • Deep drawn container made of high tensile cold rolled sheet.
  • Welded with MIG welding to provide Minimum welding points to give attractive appearance.
  • Cylinder bodies are Hydro-Tested at pressure of 35 bar and Cylinder bodies are 100 % leakage tested.
  • Bodies under goes 8 phase of chemical treatment for phosphoting & anti-corrosion.
  • The epoxy powder coating of 50 to 90 micron thickness provides inner & outer surface of the body.
  • UFS cylinder bodies are under goes the tests like, Crushing test, pressure cycle test, and corrosion test.
  • UFS Cylinder bodies are designed in conformity with ISI .
abc
TECHNICAL SPECIFICATIONS

   Capacity (Kg)

1 Kg

2 Kg

4 Kg

6 Kg

9 Kg

   Body material

Mild steel sheet

Mild steel sheet

Mild steel sheet

Mild steel sheet

Mild steel sheet

   Body sheet thickness (mm)

1.5 mm

1.5 mm

1.5 mm

1.5 mm

1.7-1.8 mm

   Hydraulic test pressure

35 bar

35 bar

35 bar

35 bar

35 bar

   Body burst pressure

Minimum 55 bar

Minimum 55 bar

Minimum 55 bar

Minimum 55 bar

Minimum 55 bar

   Dimension ( OD ) mm

87 mm

110mm

150mm

150mm

175mm

   Phosphate coating thickness (In micron)

8-9

8-9

8-9

8-9

8-9

   Powder coating thickness¬†(In micron)

50-90

50-90

50-90

50-90

50-90
